TTE700 6360 2.5TFSI CZGB / CEPA / CEPB UPGRADE TURBOCHARGER

Description

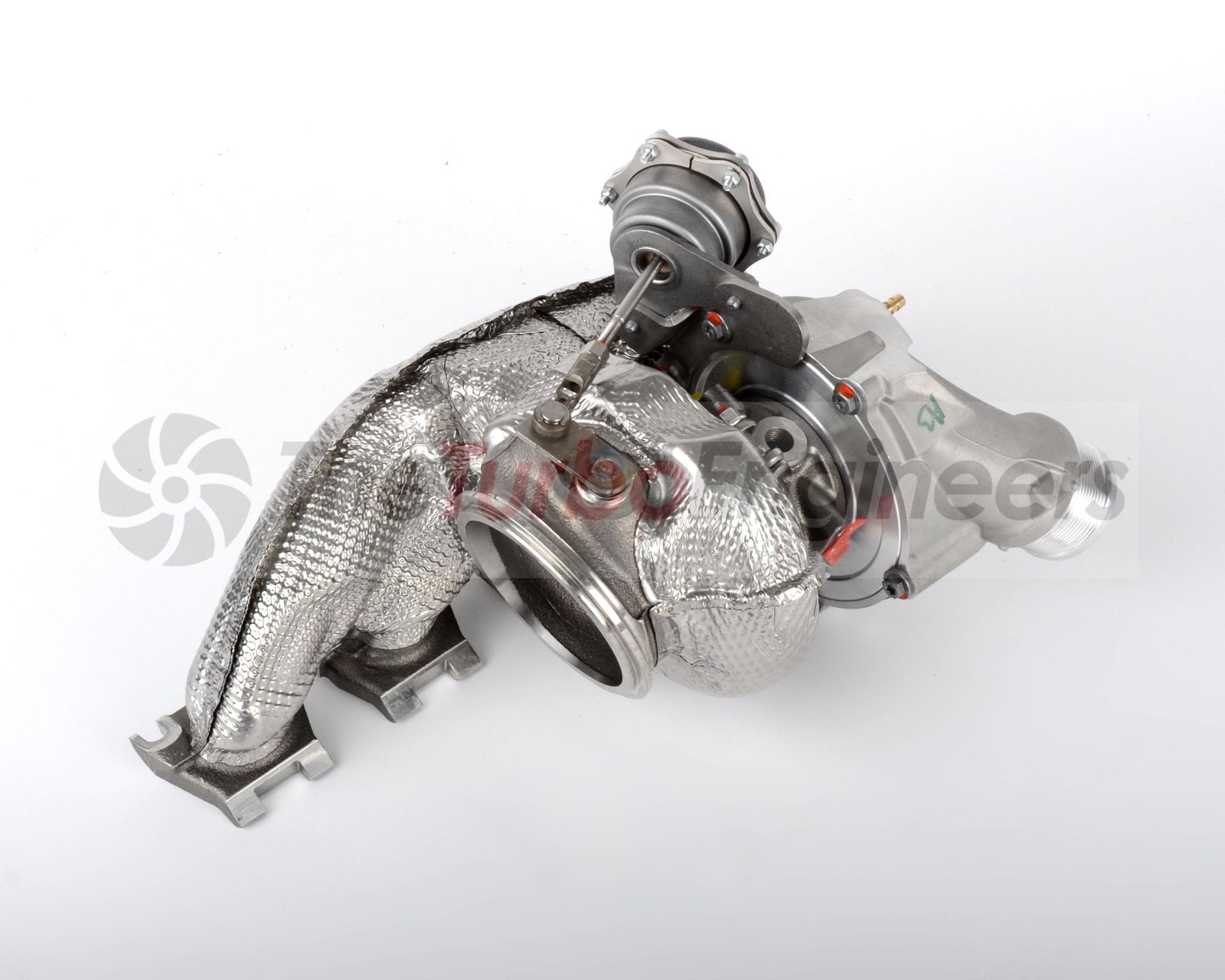

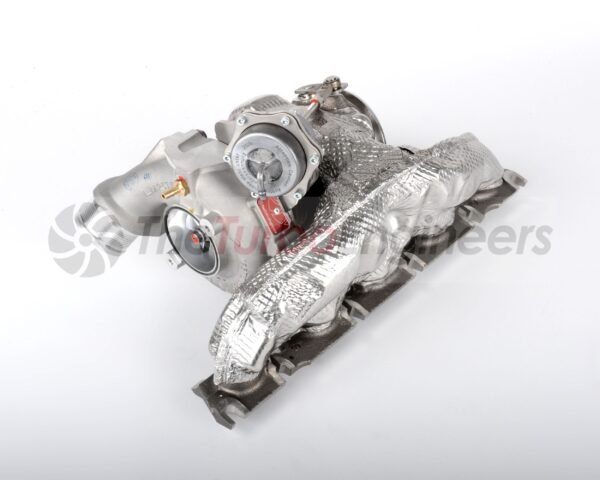

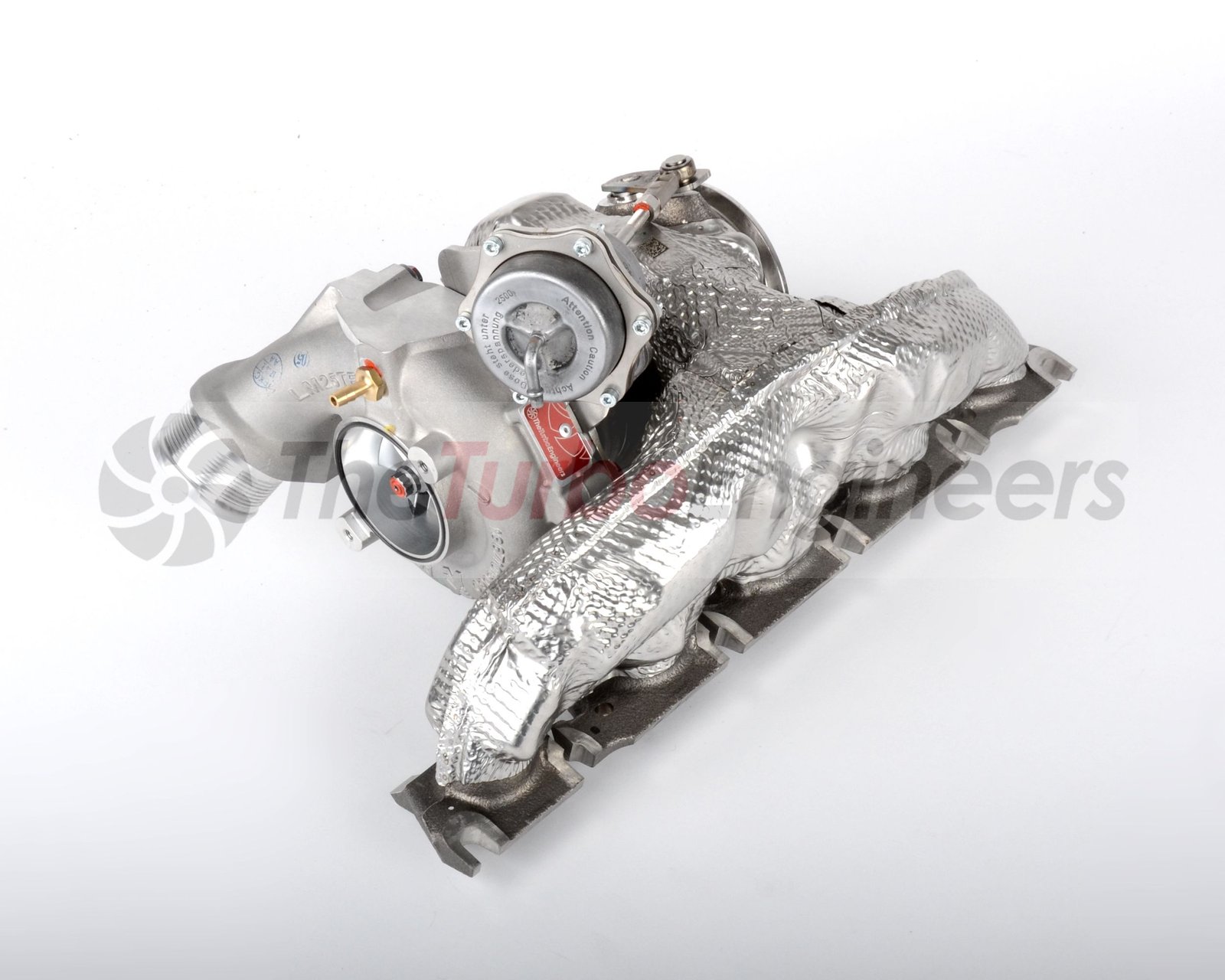

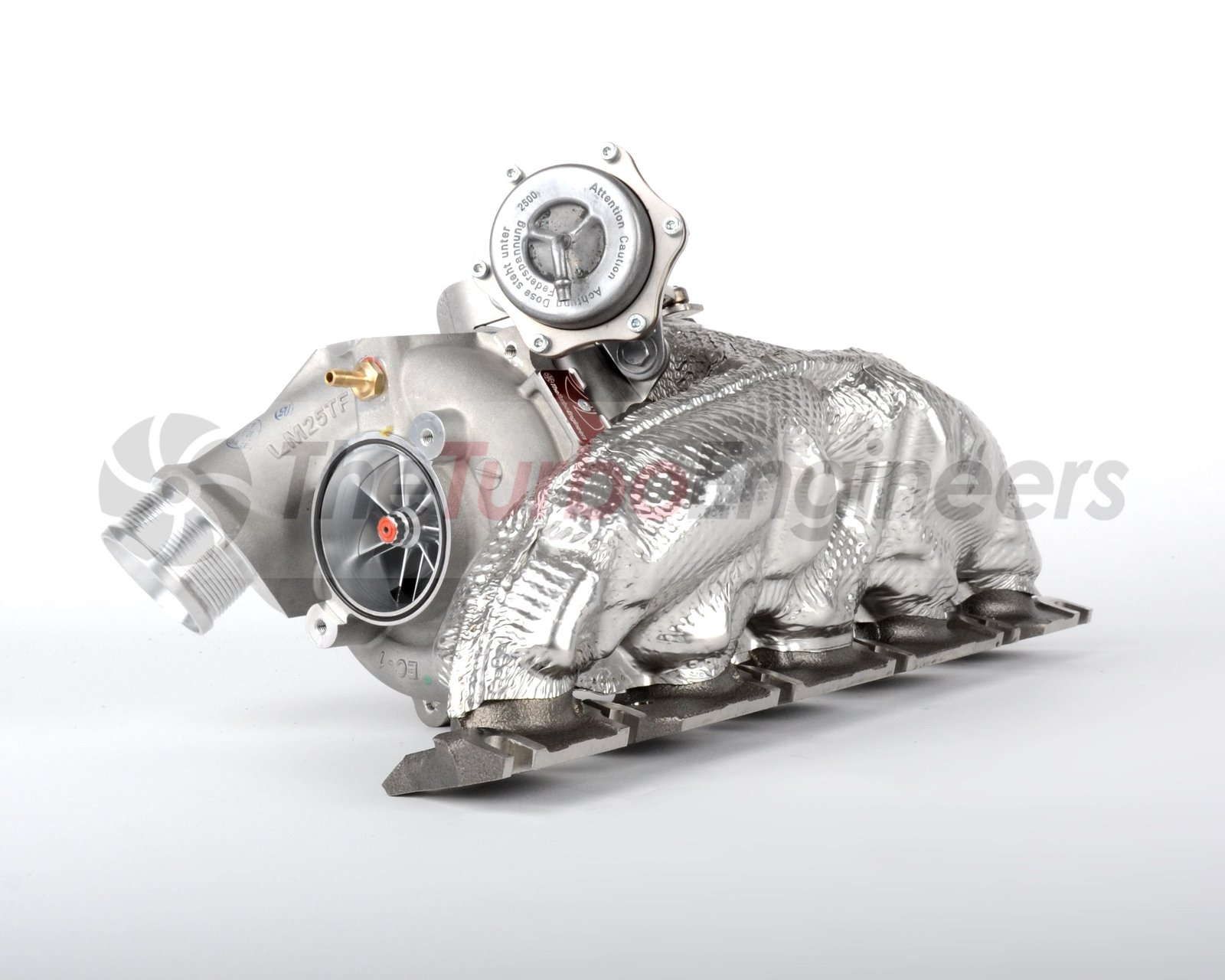

TTE700 6360 UPGRADE TURBOCHARGER AUDI TTRS 8J / RS3 8P, 8V.1 / RS Q3 CZGB / CEPA / CEPB 2.5TFSI

Introducing our TTE700 performance turbocharger based on the original EA855 DAZA turbocharger to new higher output specification for fitment to the older generation cars. Offering an upgrade to over 600PS on pump petrol.

Engineered & Enhanced

At the core of our TTE700 is a much larger TTE compressor wheel, chosen because it is highly efficient and creates an extremely high flow for comparative size. Re-Profiled compressor cover to optimised tolerance to ensure maximum compressor efficiency is given.

We CNC mill the exhaust turbine housing to accept a larger turbine and shaft.

Special profile 360 deg high-performance motorsport journal bearing is fitted, to remain durable at higher loads with no loss in transient response. The actuator used is sprung OE unit

If ordering new, we use the latest generation of BorgWarner original turbochargers with the latest spec Audi thermal heat isolation shielding on the exhaust manifold & turbine housing to lower engine bay temperatures and ensure the best performance and safety.

Please note if you send a turbo, without the original AUDI thermal shielding for the “upgrade” process, we will rework your turbo and return without the shielding, unless you buy the extra thermal Isolation process.  Depending on stock availability we may substitute TTE thermal shielding and give AUDI original thermal shielding instead.

Equilibrium

Precisely balancing our turbochargers is a key critical factor to become a TTE upgrade unit as longevity and performance are paramount. Good balance improves acoustics also. Subsequent great care is taken with all TTE turbochargers to achieving our balance standards. Firstly parts are balanced at slow speeds up to 2800RPM in multiple planes using our single parts machine, then components are assembled and then the CHRA are dynamically balanced, but this time depending on application at up to 250,000 RPM in multiple planes using our in-house VSR machine to acquire the ultimate equilibrium, to a standard far higher than OEM. Each turbocharger is supplied with a serial numbered balance test result document.

• Genuine BorgWarner turbocharger as base part

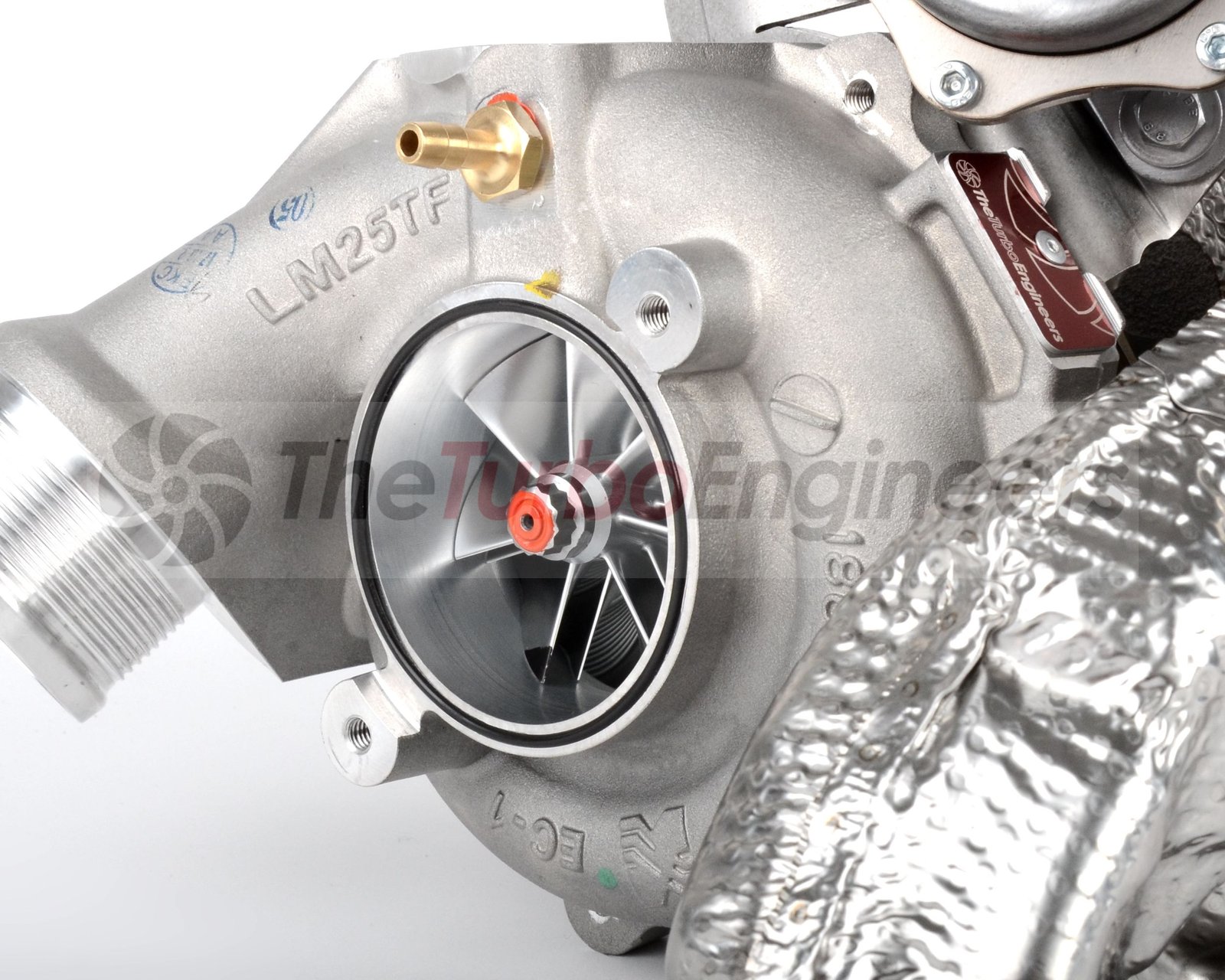

• TTE Billet Highly efficient compressor geometry 63mm inlet

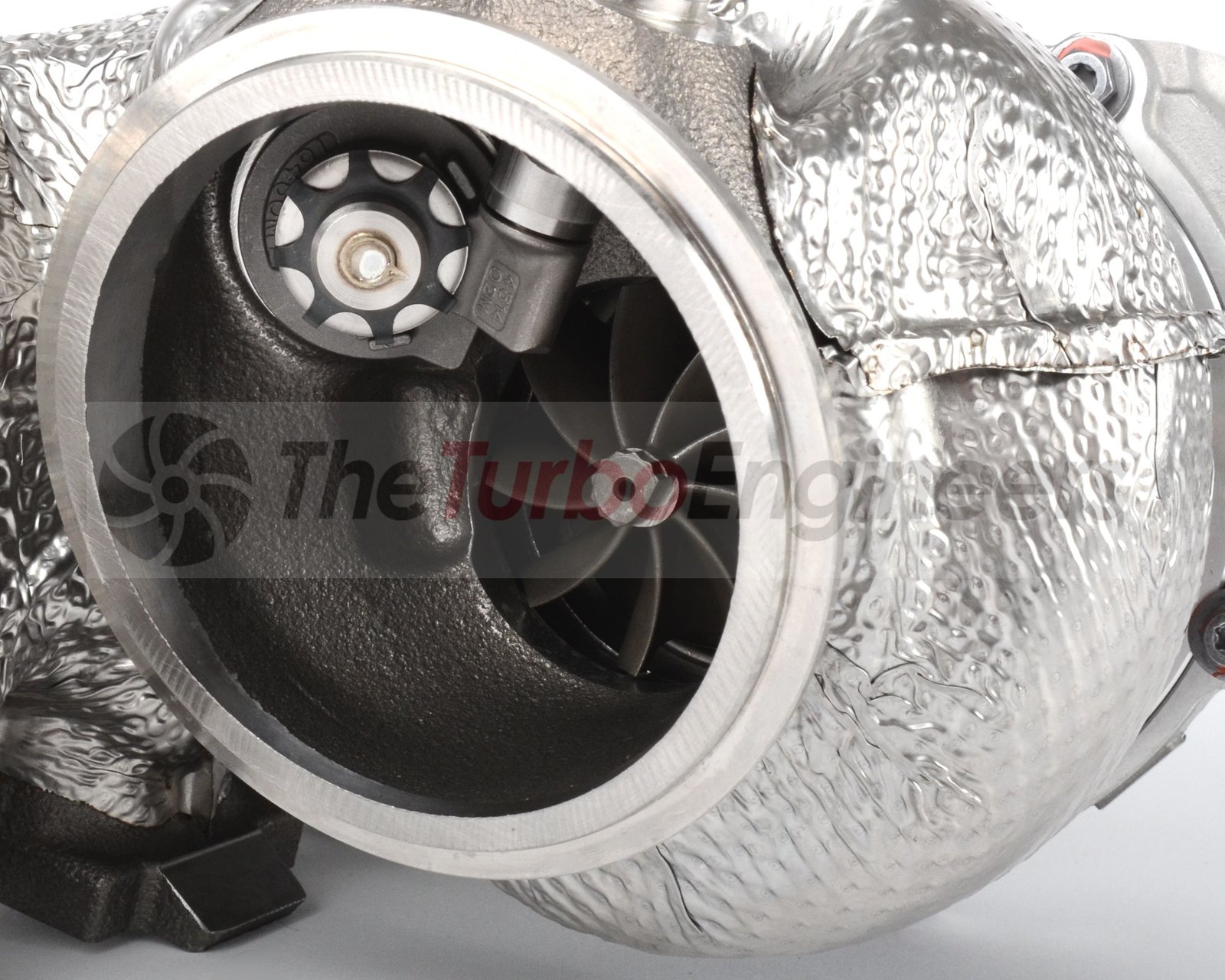

• TTE 9 Blade high-flow low-mass turbine 60mm outlet
• TTE Upgrade bearing pack
• Genuine BorgWarner Uprated & reinforced actuator
• Thermally shielded exhaust manifold and housing
• CNC Optimized Compressor Cover Machining Clearances
• 600+ PS depending on the fuel
• Single parts finely balanced then components assembled and core high-speed VSR balanced
• Supplied with a balance test result document
• Proven TheTurboEngineers quality
• Made in Germany
• 1 YEAR TTE TROUBLE-FREE WARRANTY
• This turbocharger is far from Plug&Play fitment. Fabrication skill and adaption or custom parts are required.
