THE-Bosch 82mm throttle body RS4 / S4 B5

Description

Product information “THE-Bosch 82mm throttle body RS4 / S4 B5”

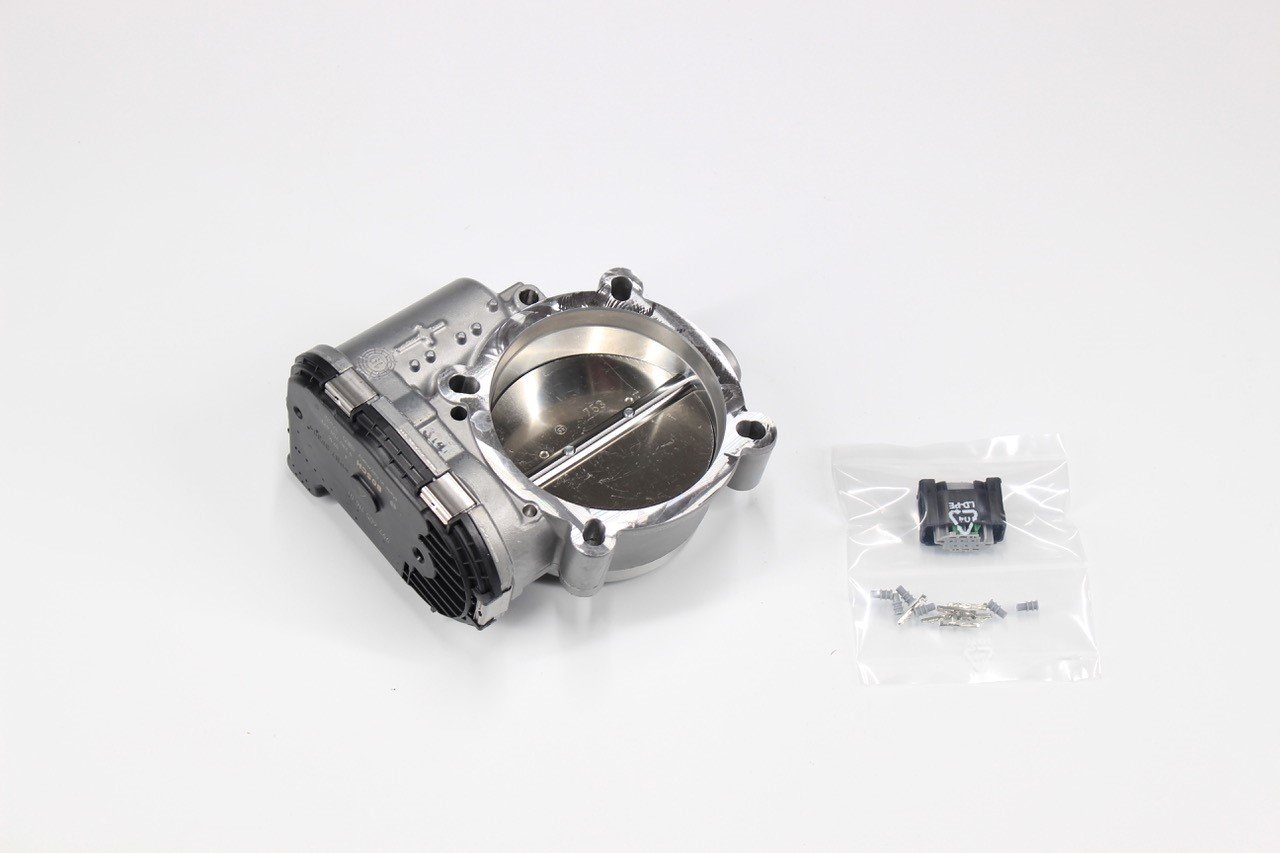

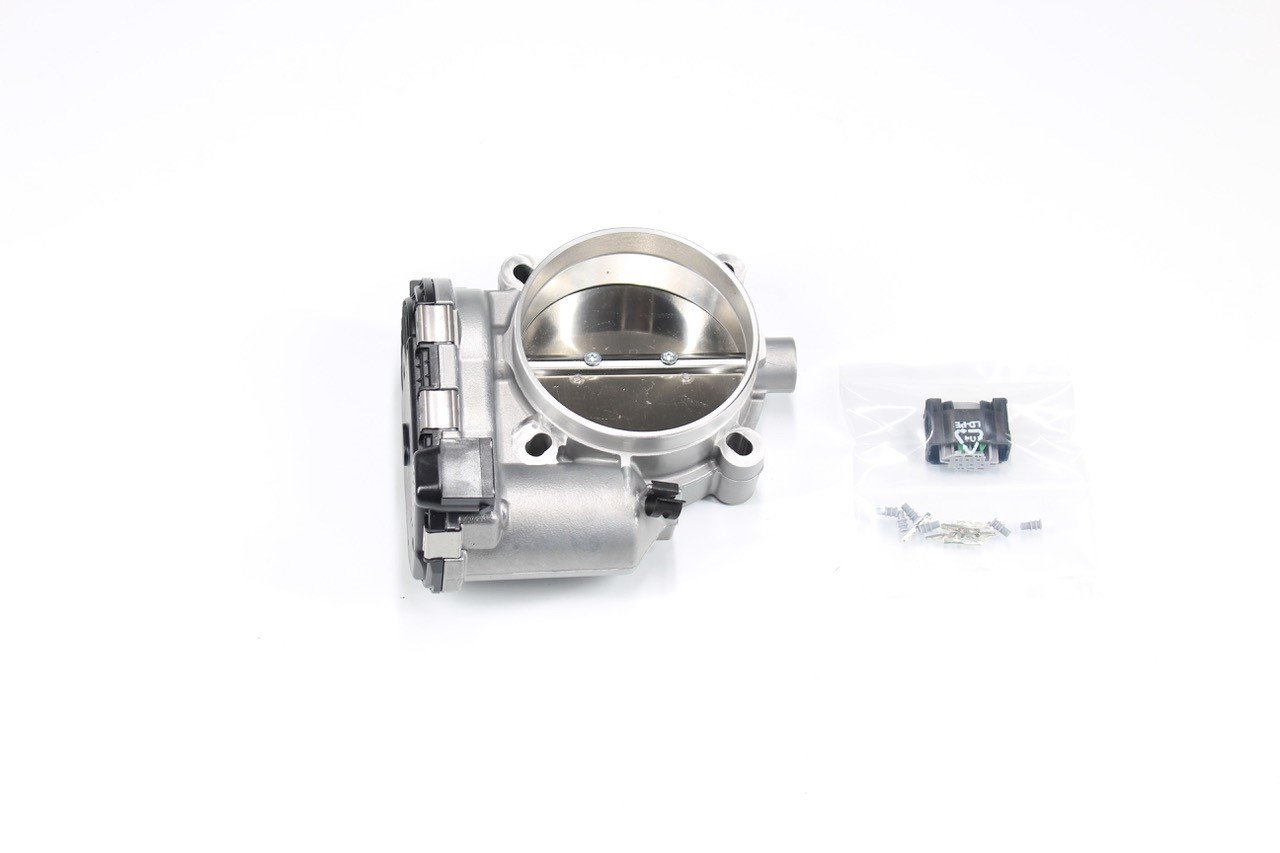

Bosch 82mm throttle body machined for RS4 bolt patten with plug

   Product information:

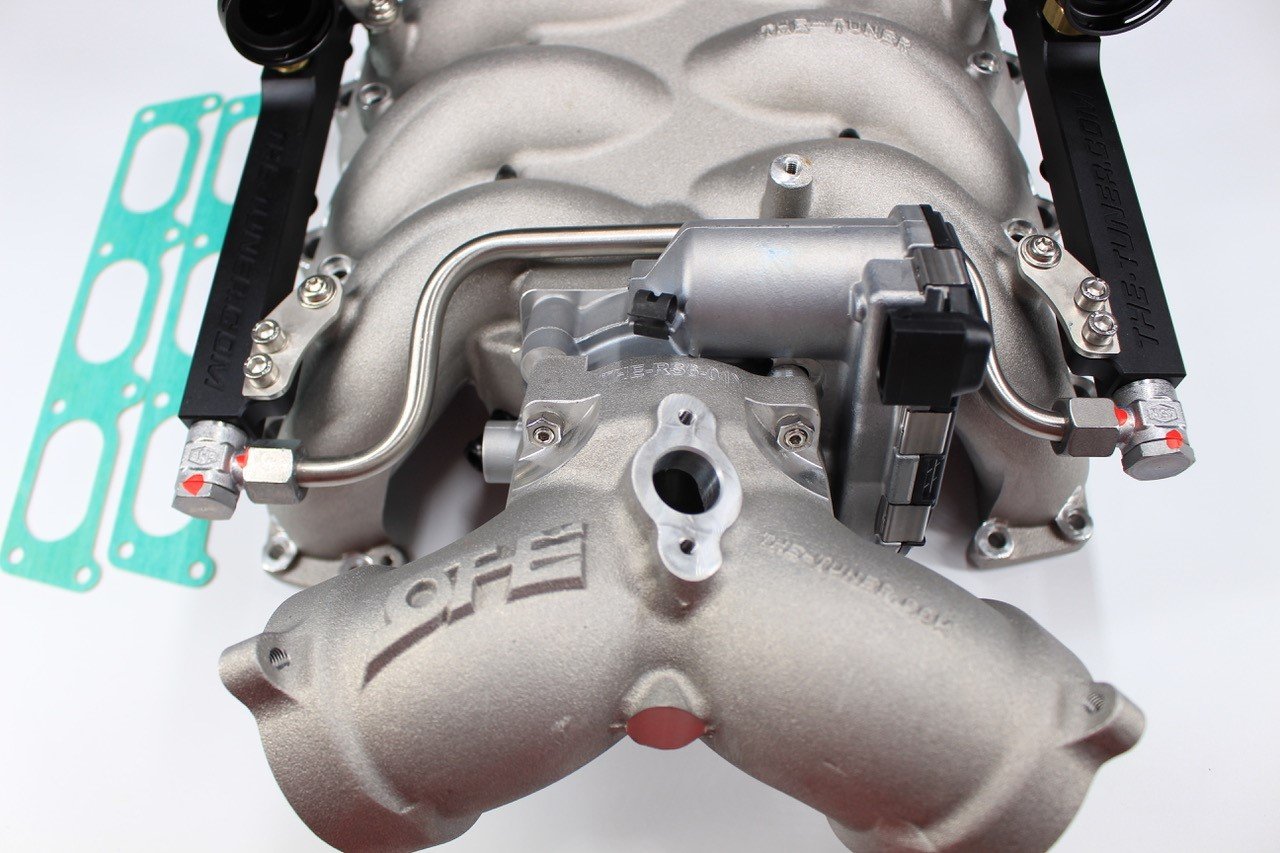

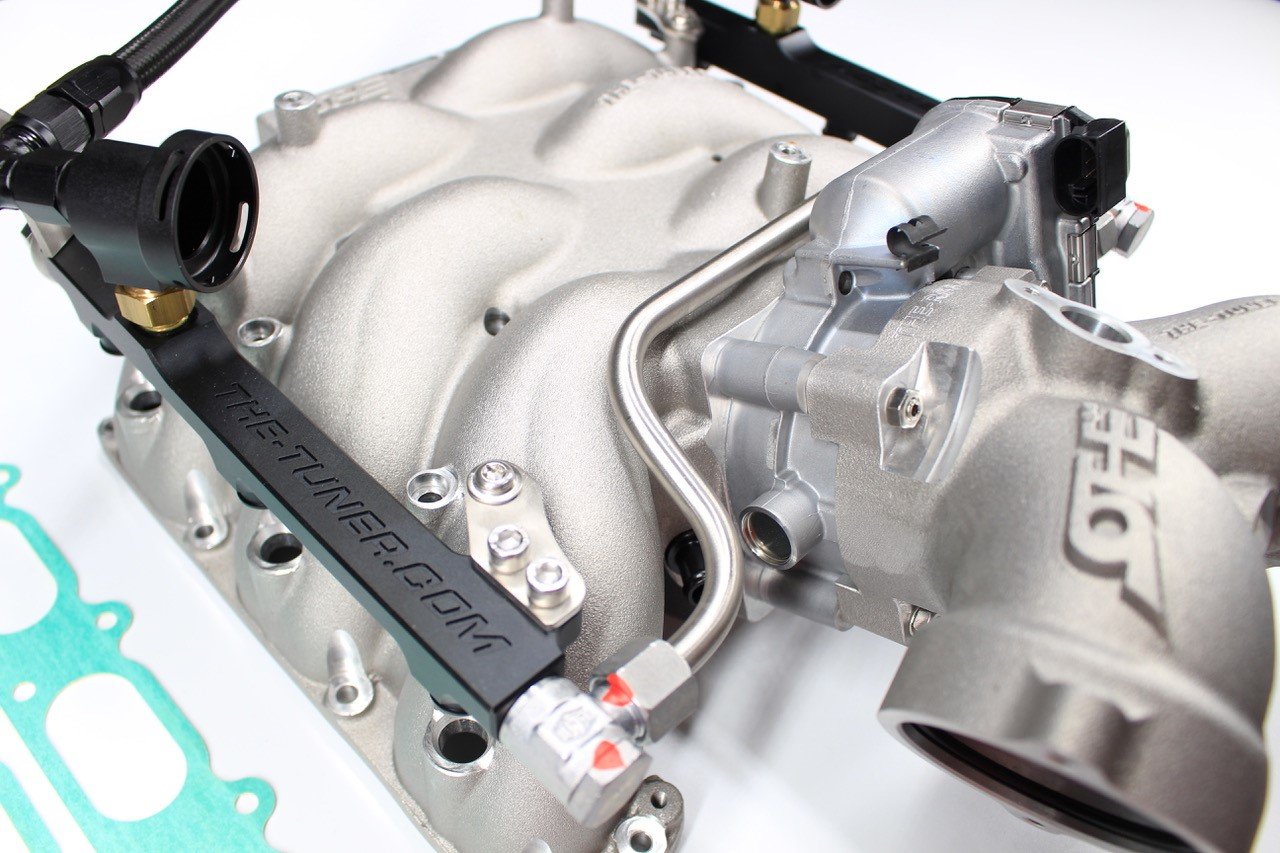

This is an original Bosch 82mm throttle body that has been machined by us to fit the OEM RS4 or our HF intake manifold in conjunction  with our RS6 cast Y. The intake of our HF manifold     is the same as the RS6.

The intake of our HF intake manifold as well as the cast Y (RS6) has been specifically designed for the 82mm throttle body (same as RS6) and in combination achieves the highest possible    flow rate with near-stock appearance.

  Advantages over the OEM RS4 throttle body:

• Larger throughput
• Larger inlet cross section
• Lower initial cost

    Key data:

• The bolt-on points of the throttle body were subsequently machined so that the bolt circle of the RS4 throttle body is identical

  Scope of delivery:

• New 82mm Bosch throttle body
• Matching connector with pins and body gaskets
• Instruction for connector pinout

–        GASKET

  Additional information:

• During installation, the original plug must be removed and the one included in the set must be installed.

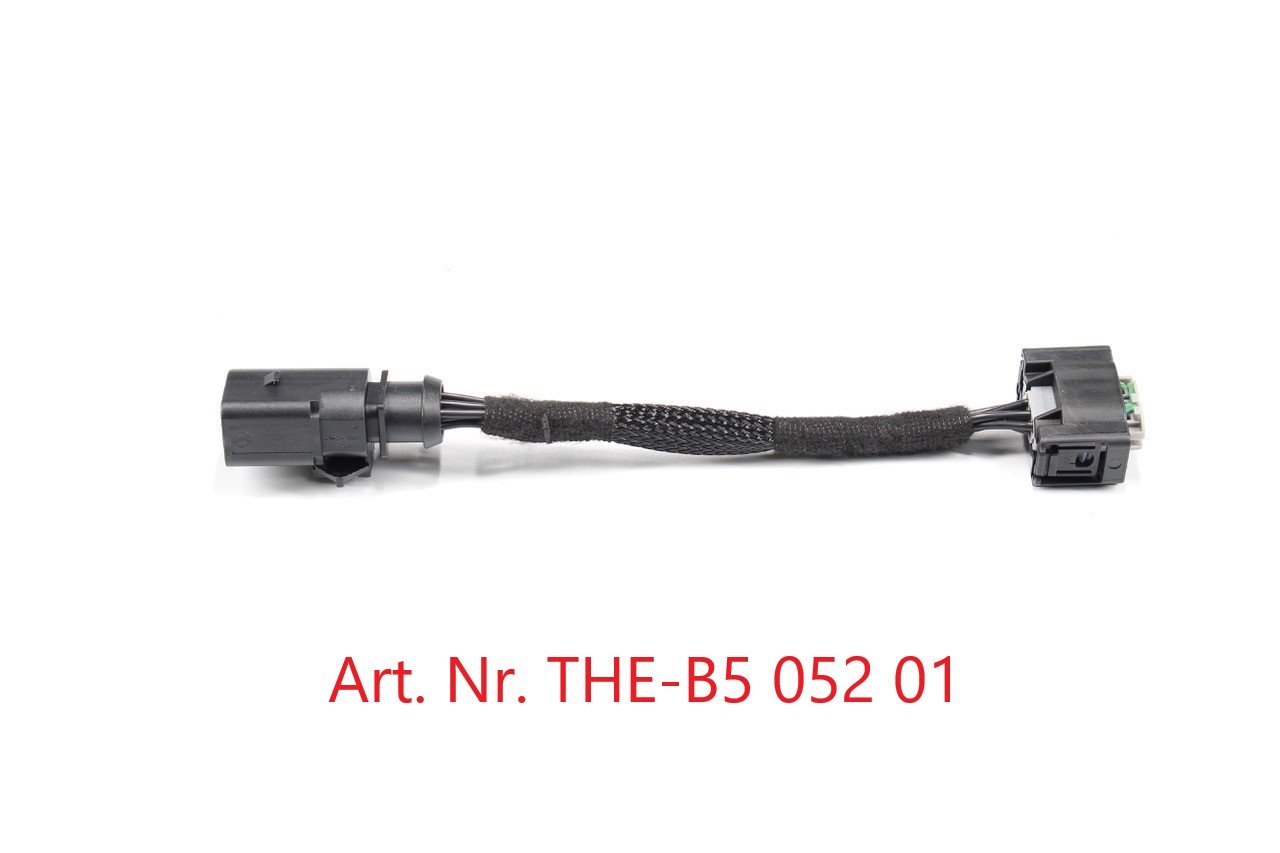

• As an alternative to repining we can offer separately an adapter plug in the selection box (adapter cable is show in the last picture)
